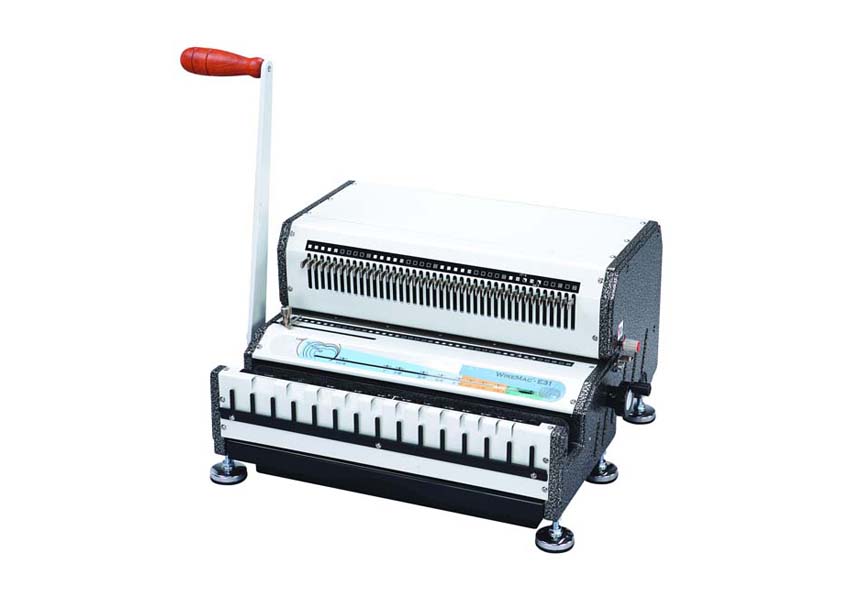

WireMac-E

Product Summary

● Master Selector: Precisely determines the appropriate pitch, wire size, closing position, and depth margin punching.
● Wire Holder: Snatches wire in position for quickly and easily inserting sheets into the wire.
● Open Ended & Extended Punching Guide: Allows an easy alignment & punching of longer documents.
● Heavy-Duty Punch Motor: Professional heavy-duty motor with the anti-overheated protector for preventing downtime.
● Electric Anti-Jam (Reverse) Function: For trouble free punching.
● Adjustable Depth Margin Control: Provides your documents with the correct depth margin punching.
● Side Margin Guide: Provides evenly centered punch for all document sizes.
● Fully Disengageable Pins: Provides a clean punch for all document sizes by independently pulling out the correct pins.
● Wire Closer Control: Accurate closer adjustment guarantees a perfect wire closing result.
● Foot Pedal Operated.

Available Punching Die Format

Model

Specification

Patterns

31

Pitch 3:1”, Square hole, 4x4mm



21

Pitch 2:1”, Rectangle hole, 4x5.5mm



31R

Pitch 3:1”, Round hole, Dia. 4.5mm



21R

Pitch 2:1”, Round hole, Dia. 6mm





Product Specifications

Model

WM-E31

WM-E21

Pitch

3:1

2:1

Disengaging Dies

40

27

Hole Punch

Square (4 x 4 mm)

Rectangular (4 x 5.5 mm)

Closing Capacity

From 3/16” to 9/16”

From3/16” to 1-1/4”

Punching Capacity

Up to 25 sheets*

Punching Length

14”

Punching Operated

Electric

Closing Operated

Manual

Dimensions (L x W x H)

420 x 400 x 260mm (16.5” x 15.7” x 10.2”)

Machine Weight

32.7 Kg (72 lbs)

*:when using 70 gsm(20lb) paper
