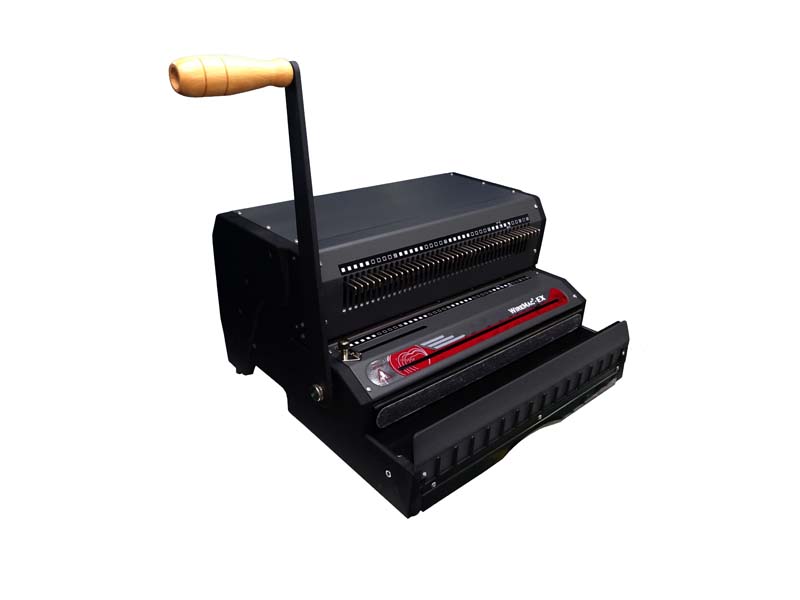

WireMac-EX

Product Summary

● Master Selector: Precisely and quickly determine the appropriate pitch, wire size, closing position, and depth margin punching.
● Adjustable Depth Margin Control: Provide documents with the correct punched depth margin for optimal paper thickness and wire diameter ratio.
● Wire Holder: Hold the wire in position for quick and easy insertion of punched sheets onto the wire.
● Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
● Side Margin Control: Easy alignment of paper before punching.

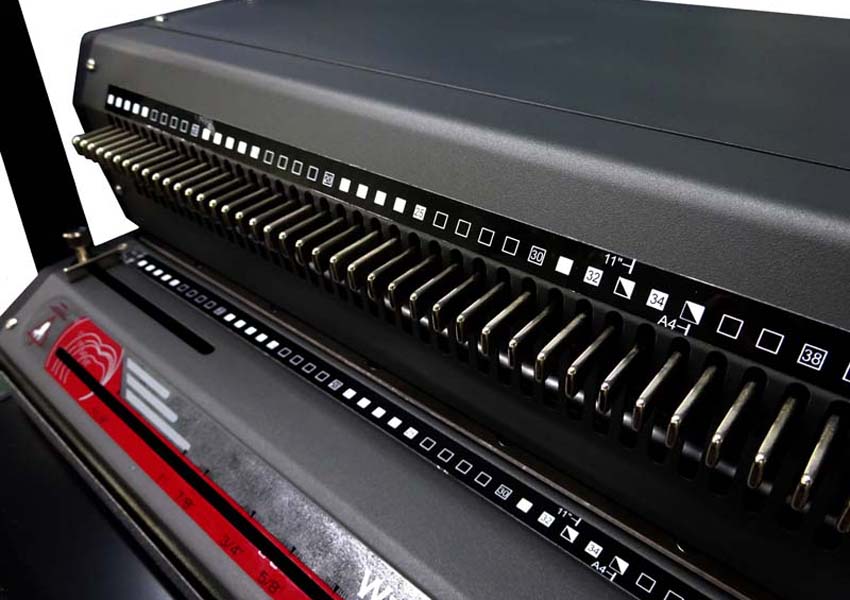

● Fully Disengaging Pins: Quick and easy adjustment of punching length.
● Wire Closer Control: Accurate closer adjustment guarantees a perfectly bound document.
● Thumb Cut Punching: Specifically for binding calendars with hangers.
● Heavy-Duty Punch Motor : Heavy-duty motor with the thermal overload protection to prevent downtime.
● Manual Anti-Jam Function: For trouble free punching.

Available Punching Die Format

Model

Specification

Patterns

31

Pitch 3:1”, Square hole, 4x4mm



21

Pitch 2:1”, Rectangle hole, 4x5.5mm



31R

Pitch 3:1”, Round hole, Dia. 4.5mm



21R

Pitch 2:1”, Round hole, Dia. 6mm





Product Specifications

Model

WireMac-EX

Item Code

WM-EX

Punching Mode

Electric (115V or 230V)

Punching Capacity

28 sheets (11" 75gsm 20lbs)

Punching Length

14” (356mm)

Disengaging Dies

Fully

Binding Capacity

3/16”~1-1/4”

Machine Dimensions

390x 430 x 240mm

Machine Weight

25.5 kg

Package Dimensions

590x 525 x 390mm

Package Weight

29 kg
