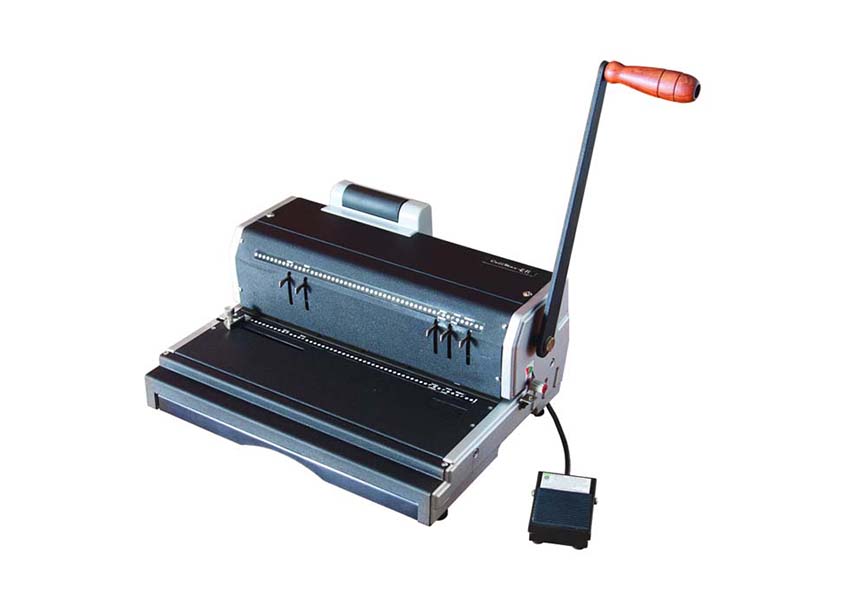

CoilMac-ER
CoilMac-ER
Product Summary
● Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
● Adjustable Depth Margin Control: Provide documents with the correct punched depth margin for optimal paper thickness and wire diameter ratio.
● Side Margin Control: Easy alignment of paper before punching.
● 5 or Fully Disengaging Pins: Quick and easy adjustment of punching length.
● Heavy-Duty All Metal Construction: Guarantee maximum productivity and durability.
|
Model |
Specification |
Patterns |
|
6 |
Pitch 6mm, Round hole, Dia. 4mm |
 |
|
41 |
Pitch 4:1”, Round hole, Dia. 4mm |
 |
|
41V |
Pitch 4:1”, Oval hole, 4x5mm |
 |
|
51 |
Pitch 5:1”, Round hole, 3.6mm |
 |
|
Model |
CM-ER 6 |
CM-ER 51 |
CM-ER 41 |
CM-ER 41+ |
|
Pitch |
6 mm |
5:1 |
4:1 |
4:1 |
|
Disengaging Dies |
5 or Fully |
54 |
||
|
Hole Punch |
Round (ψ4 mm) |
Round (ψ3.6 mm) |
Round (ψ4 mm) |
Oval (4 x 5 mm) |
|
Punching Capacity |
20 sheets (20lbs) |
|||
|
Punching Length |
14” (356mm) |
|||
|
Binding Mechanism |
Top Electric Inserter |
|||
|
Binding Capacity |
Up to 2” (50mm) |
|||
|
Machine Dimensions |
445x350x460mm |
|||
|
Machine Weight |
13.9kg |
|||
|
Package Dimensions |
540x450x290mm |
|||
|
Package Weight |
16kg |
|||
