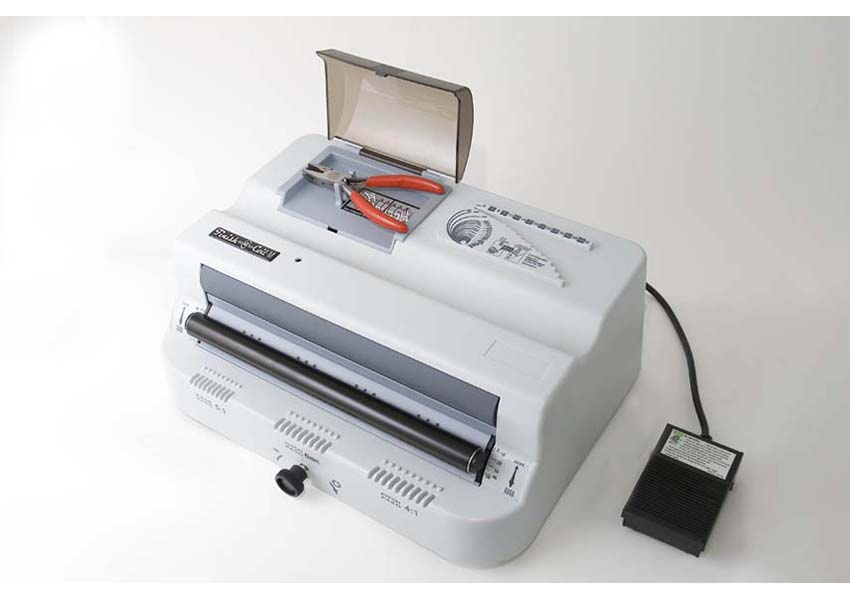

CoilMac-ECP
CoilMac-ECP
Product Summary
● Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
● Adjustable Depth Margin Control: Provide documents with the correct punched depth margin for optimal paper thickness and wire diameter ratio.
● Side Margin Control: Easy alignment of paper before punching.
● 5 or Fully Disengaging Pins: Quick and easy adjustment of punching length.
● Heavy-Duty All Metal Construction: Guarantee maximum productivity and durability.
● Heavy-Duty Punch & Roller Motor (CoilMac-EPI and CoilMac-ECP version): Heavy-duty motor with the thermal overload protection to prevent downtime.
|
Model |
Specification |
Patterns |
|
6 |
Pitch 6mm, Round hole, Dia. 4mm |
 |
|
41 |
Pitch 4:1”, Round hole, Dia. 4mm |
 |
|
41V |
Pitch 4:1”, Oval hole, 4x5mm |
 |
|
51 |
Pitch 5:1”, Round hole, 3.6mm |
 |
|
Model |
CM-ECP 6 |
CM-ECP 51 |
CM-ECP 41 |
CM-ECP 41+ |
|
Pitch |
6 mm |
5:1 |
4:1 |
4:1 |
|
Disengaging Dies |
5 or Fully |
54 |
||
|
Hole Punch |
Round (ψ4 mm) |
Round (ψ3.6 mm) |
Round (ψ4 mm) |
Oval (4 x 5 mm) |
|
Punching Capacity |
20 sheets (20lbs) |
|||
|
Punching ength |
14” (356mm) |
|||
|
Binding Mechanism |
None |
|||
|
Binding Capacity |
Up to 2” (50mm) |
|||
|
Machine Dimensions |
420x400x260mm (16.5” x 15.7” x 10.2”) |
|||
|
Machine Weight |
23.6kg |
|||
|
Package Dimensions |
540x520x355mm |
|||
|
Package Weight |
27.2kg |
|||
|
|
||||
