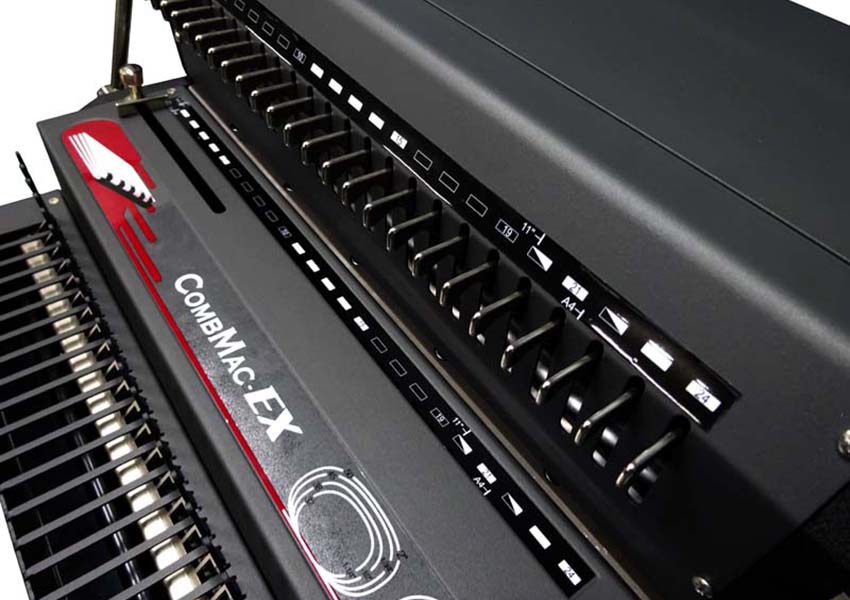

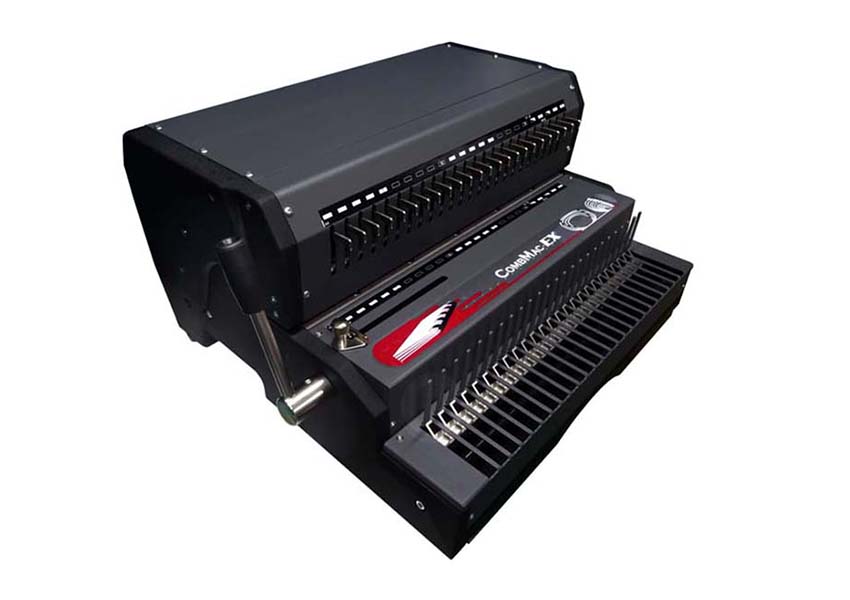

CombMac-EX

Product Summary

● Heavy-Duty Punch Motor: Heavy-duty motor with the thermal overload protecting to prevent downtime.
● Manual Anti-Jam Function: For trouble free punching.
● Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
● Adjustable Depth Margin Control: Provide documents with the correct depth margin for optimal paper thickness and comb diameter ratio.
● Side Margin Control: Easy alignment of paper before punching.
● Fully Disengaging Pins: Quick and easy adjustment of punching length.
● Heavy-Duty All Metal Construction: Guarantee maximum productivity and durability.
● Foot Pedal Operated.

Product Specifications

Model

CombMac-EX

Item Code

Comb-EX

Punching Mode

Electric (115V or 230V)

Punching Capacity

28 sheets (11" 75gsm 20lbs)

Punching Length

14” (356mm)

Disengaging Dies

Fully

Binding Capacity

1/4”~2”

Machine Dimensions

390x 430 x 240 mm

Machine Weight

23.6 kg

Package Dimensions

590 x 525 x 390 mm

Package Weight

27.1kg
