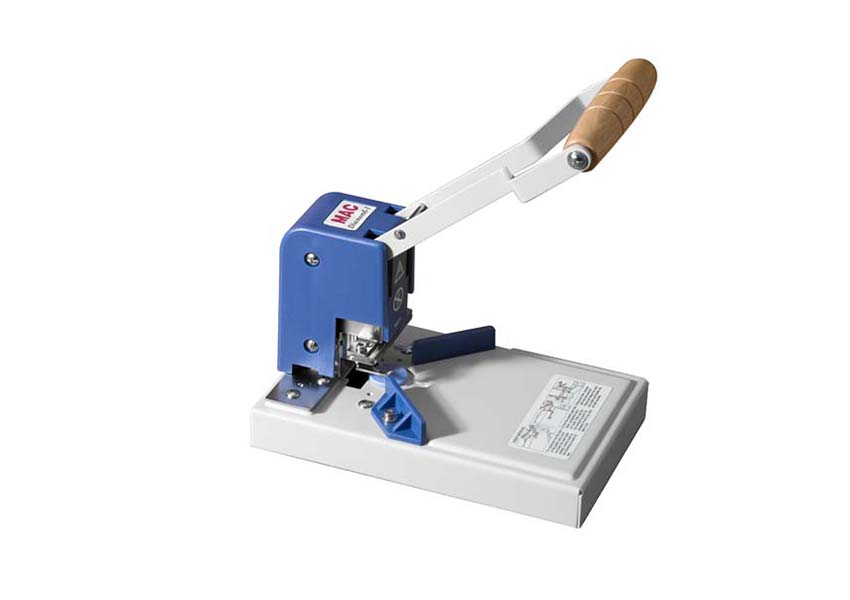

Diamond 1
Diamond 1
Product Summary
● High Productivity: Specially designed to cut through multiple sheets effectively with the least efforts and with minimum wear to the cutting die.
● Interchangeable Die Systems: Available changeable dies 3.5mm, 6mm, 10mm”, 45°, straight, half moon, and hole for your various jobs.
● Work with all Standard Materials: Like: PVC, polyester, leather, paper, polypropylene, etc.
Available Cutting Die Formats
|
Model |
Specification |
Patterns |
|
K3.5 |
R 3.5mm |
 |
|
K6 |
R6mm |
 |
|
K10 |
R10mm |
 |
|
KST |
Straight |
 |
|
KHM |
Half moon |
 |
|
KHP |
Round hole |
 |
Product Specifications
|
Model |
Diamond 1 |
|
Item Code |
AD1 |
|
Cutting Mode |
Manual |
|
Cutting Capacity |
1mm thickness (20lbs) |
|
Available Cutting Dies |
K3.5/ K6/ K10/ KST/ KHM/ KHP |
|
Machine Dimensions |
229x140x250mm |
|
Machine Weight |
2kg |
|
Package Dimensions |
290x160x190mm |
|
Package Weight |
2.75kg |
