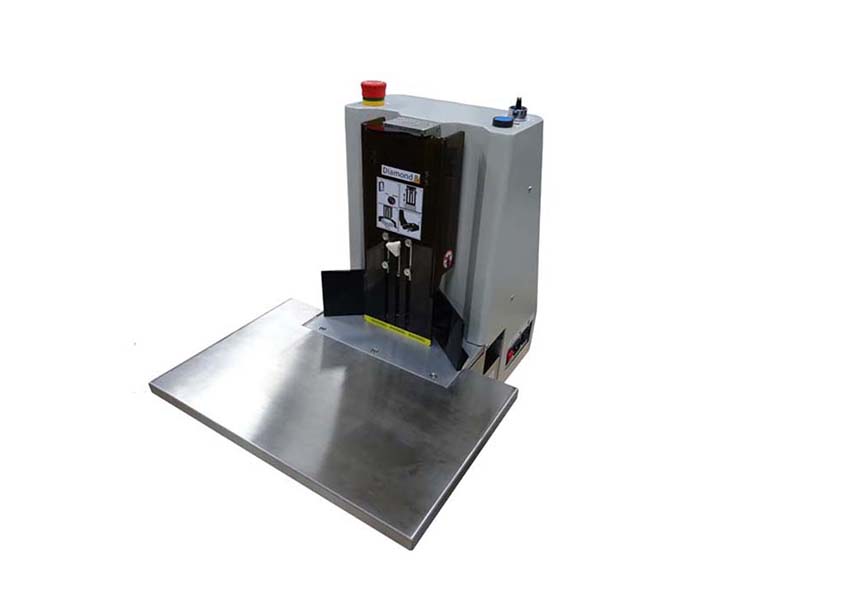

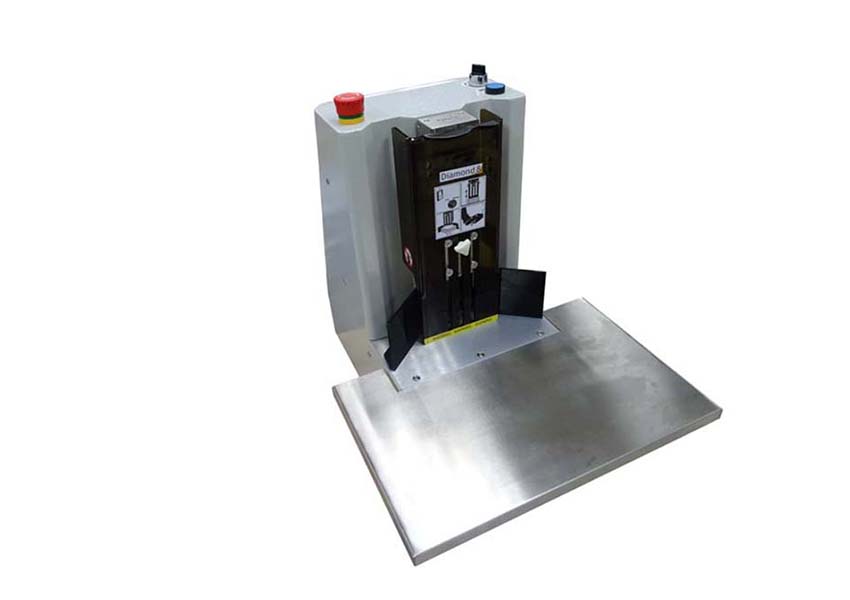

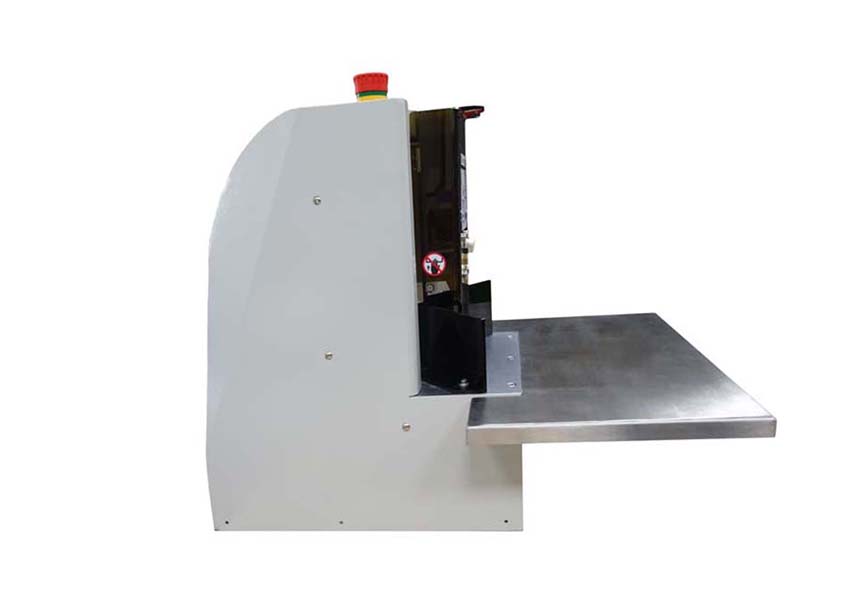

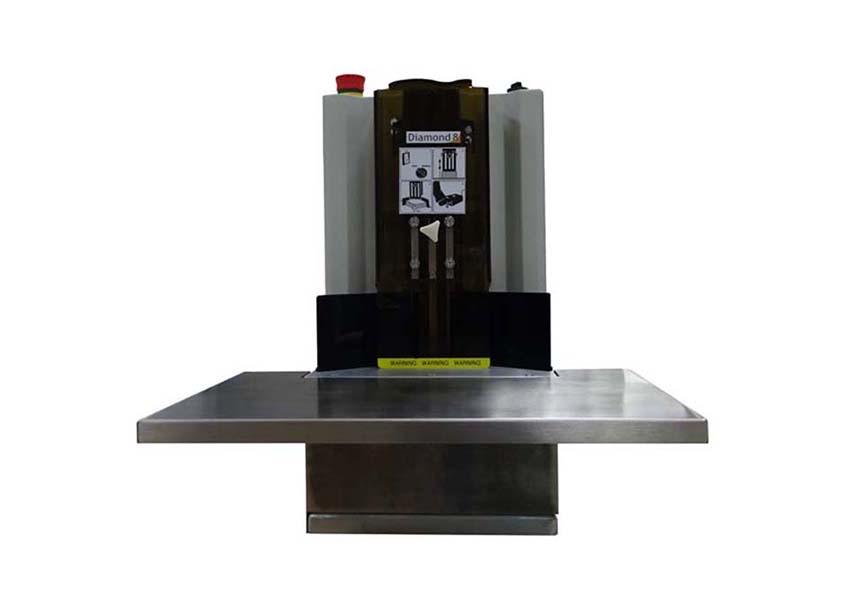

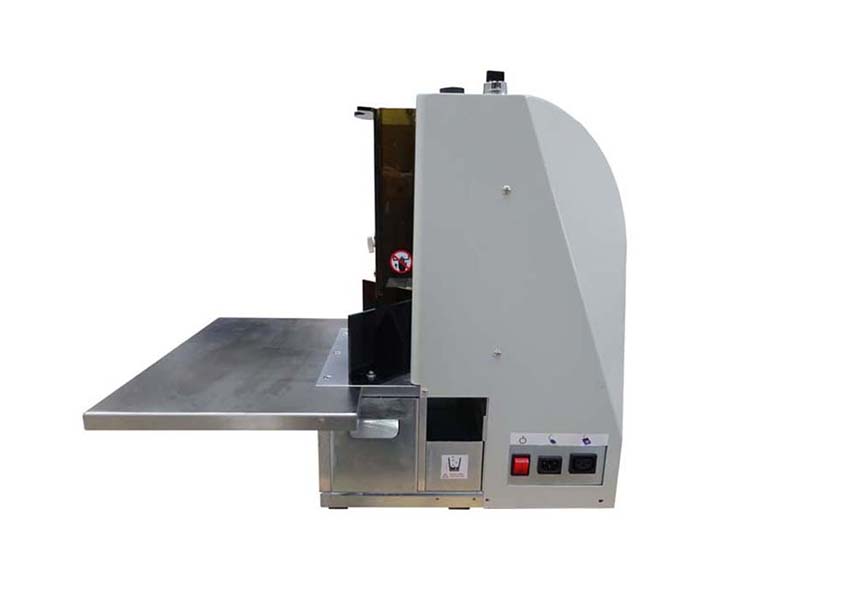

Diamond 8
Diamond 8
Product Summary
● High Productivity: Specially designed to cut through multiple sheets effectively with the least effort and with minimum die depreciation.
● Heavy-Duty Cutting Motor: Professional heavy-duty motor with the anti-overheated protector for preventing downtime.
● Interchangeable Die Systems: Available Changeable Dies 1/8”, 1/4”, 3/8”, 1/2”, and 5/8” for your various jobs.
● Work with all Standard Materials: Like: PVC, polyester, leather, paper, polypropeline, etc.

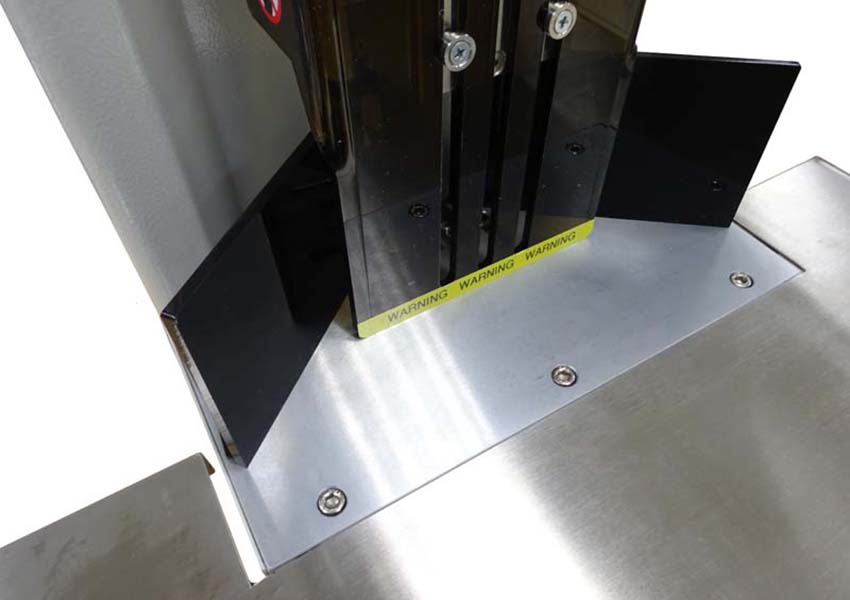

● Protective Safety Cover: Keeps your fingers safely out of the cutting area during use.
● Detachable Pressing Bar: Holds paper in place during the rounding process and also detaches for easy replacement of knives.
● Foot Pedal Operated.
● Large Work Table.
Model |
Specification |
Patterns |
K3.5 |
R 3.5mm |
|
K6 |
R6mm |
|
K10 |
R10mm |
|
K13 |
R13mm |
|
K16 |
R16mm |
Model |
AD8 |
Cutting Capacity |
80mm |
Suitable Die |
R3.5/R6/R10/R13/R16 |
Cutting Operated |
Electric |
Dimensions (L x W x H) |
340 x 290 x 570 mm |
Machine Weight |
45.5 kg |
*:When using 80 gsm(20lb) paper
